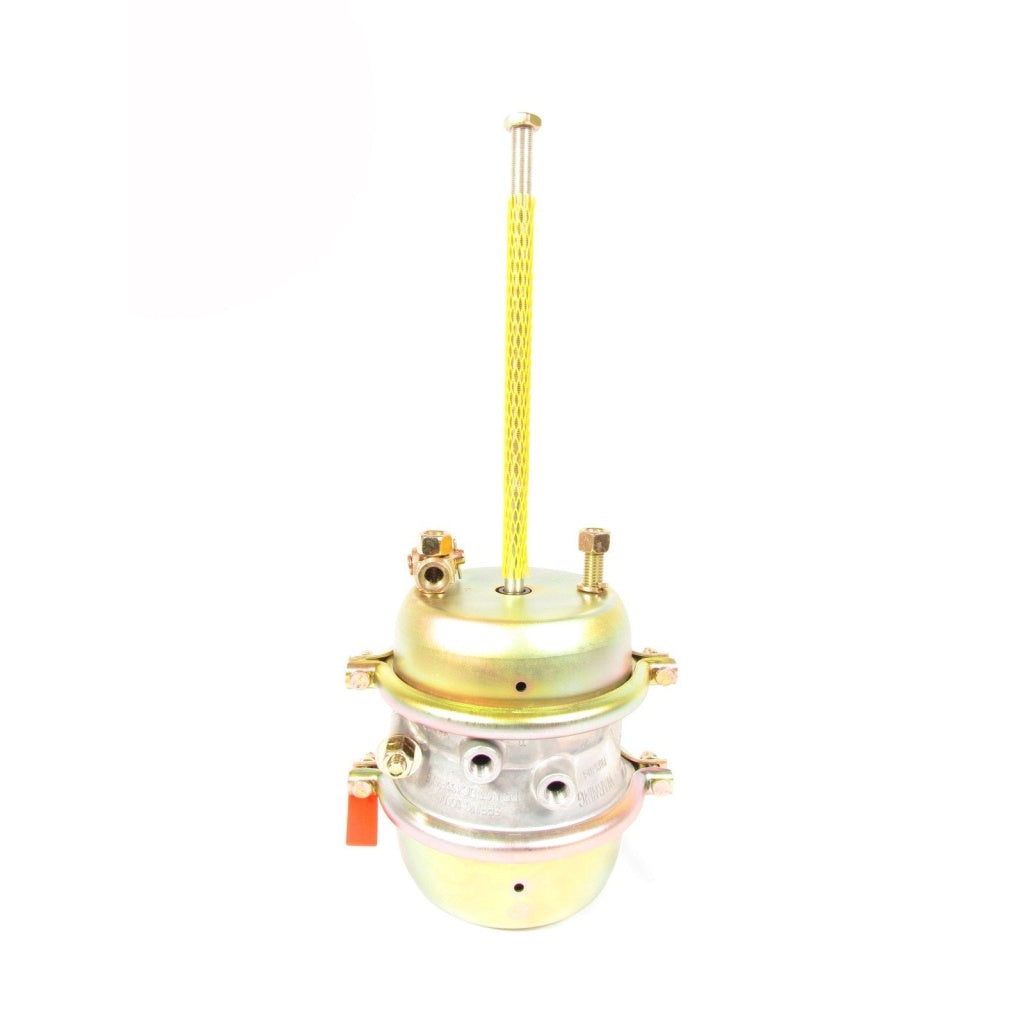

30/30 Serviceable Air Spring Brake Chamber – 2.5″ Stroke Threaded

Highlights:

• Rugged Service Housing. 9 Gauge Steel and Powder-coated Finish for High Resistance to Fatigue and Corrosion
• Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards.
• Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
• Standard Stroke with Length: 2 1/2″
• Type 30/30 – Push Rod Length: 13 1/4″

Specifications:

• Part: Air Brake Chamber
• Part Type: 30/30
• Part Series: GoldSeal
• Air Port Position: 90°
• Air Port Thread Diameter: 3/8-18 NPT
• Bracket to End of Spring Housing Length: 9″
• Clevis: Threaded
• Finish: Powder Coated
• Thread Diameter: 5/8″-11 UNC
• Maximum Pressure: 150 PSI
• Push Rod Diameter: 5/8-18 UNF
• Push Rod Length: 13 1/4″
• Service Chamber Size: 30/30
• Stroke: Standard
• Stroke Length: 2 1/2″
• Stud Distance: 4 3/4″
• Notes: Serviceable

CrossReference:

• Automann: 179SB3030, 179SB3030S
• Bendix: 165255, K049898, NT3030STD120
• Dayton: 3030C
• Euclid: E-BC3030C
• Freightliner: 3030TS
• Haldex: GC3030
• Mack: 19QE441RP1
• Meritor: R873030C
• PAI: EM30300-100
