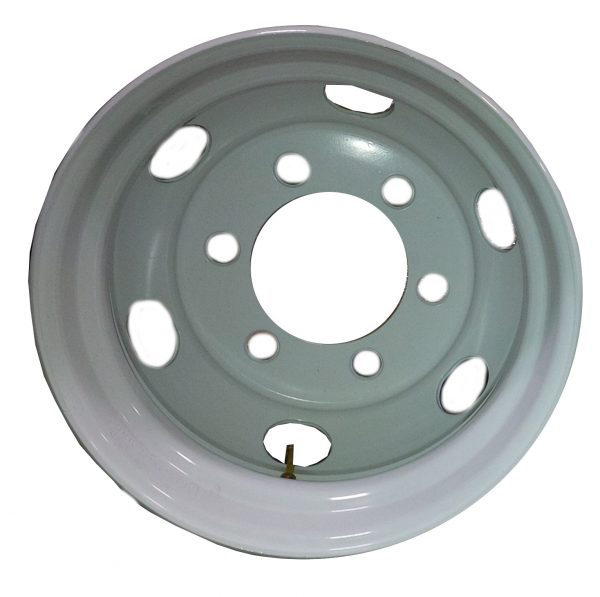

17.5 Stud Pilot Steel White Wheel 6 Hole
17.5 Stud Pilot Steel White Wheel 6 Hole
No se pudo cargar la disponibilidad de retiro
Product Description
This 17.5 wheel should fit any hub that has an 6 on 8.75″ (stud-pilot / budd) bolt pattern with 6.5″ center bore, it comes with a valve stem and our Platinum Coating allowing this wheel to be ready to work for you immediately.
suggested tire sizes:
215/75R17.5
235/75R17.5
245/70R17.5
9R17.5
10R17.5
| Size | |
|---|---|
| Mount | |
| Bolt Hole | |
| Bolt Circle | |
| Bolt Pattern | |
| Bore | |
| Wheel Offset | |
| Disc Thickness | |
| Approx. Wt (lbs) | |
| Max. Load & Inflation | |
| Vehicle Type |
Stud Piloted wheels are centered on the studs or bolt holes of the hub. The bolt holes edges are tapered or chamfered – not straight
Often referred to as Budd Style wheels or Budd wheels. Stud Piloted wheel measurements are often referenced in inches whereas Hub Piloted are in millimeters (mm).
Stud piloted dual wheels use inner and outer cap nuts, so that each wheel is tightened individually. For a front or single wheel, a single cap nut is used. Right and left hand fasteners are required. Wheels of this type have spherical countersinks on each stud hole.
